I. SCALE OPERATION

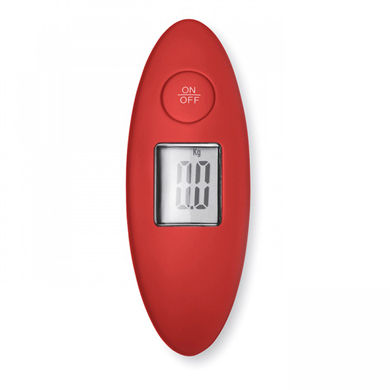

1. Press the ON/OFF button once to turn on the scale

2. Wait until “0.0” is displayed.

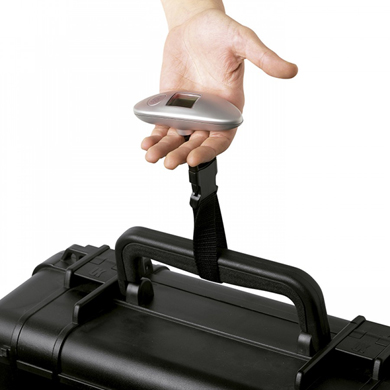

3. Using the scale, lift the luggage and hold it as still as possible. After 3 seconds of stability, the word “Hold” will be displayed in the lower left corner of LCD.

4. After you have read the weight, you can remove the object(s) from the strap and press ON/OFF button to re-zero the scale.

5. To turn the scale off, press ON/OFF button once again.

6. The weighing units can be changed by pressing and holding ON/OFF button for approximately 2 seconds. Either LB or KG will be displayed.



II. Specifications

Capacity: 75lb/34kg

Readability: 0.1lb/0.1kg

Weighing units: lb/kg

Auto-off: 60s off

Operation temp: 10 C~~40 C

Power: 1 x CR2032

Scale dimension: 10x3.6x2.5cm



III. Battery instruction

1. Open the battery cover on the botton of the scale

2. Insert the new battery, making sure that the positive and negative ends are properly aligned as picture shows.

3. Close the battery cover.
